Test Laboratory Information

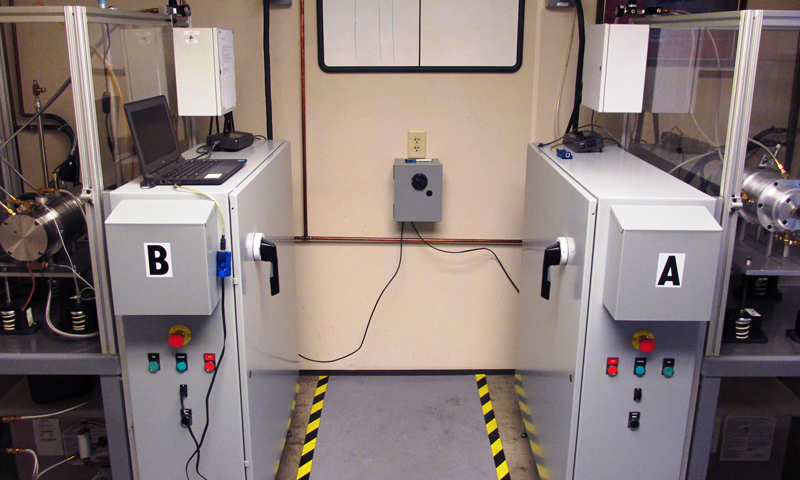

Test Rigs A and B
For testing seals under various operating conditions.

All test rigs are capable of generating operating speeds up to 25,000 RPM, temperatures up to 300 degrees F, and pressures up 50 PSI.

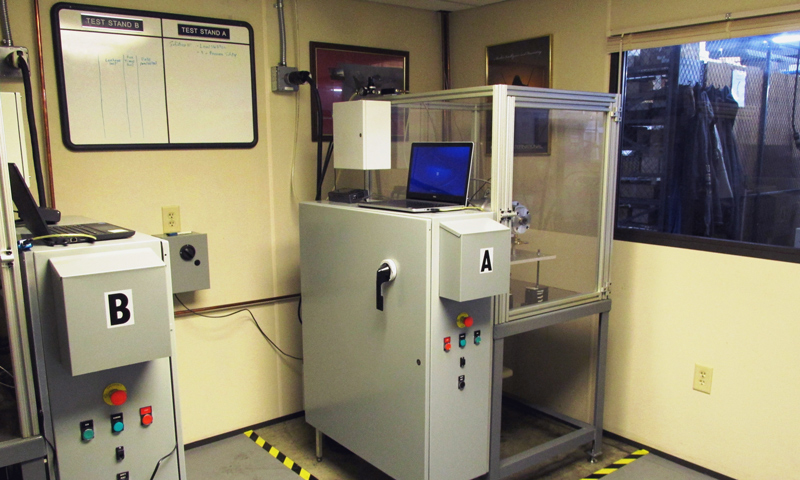

Test Rig A

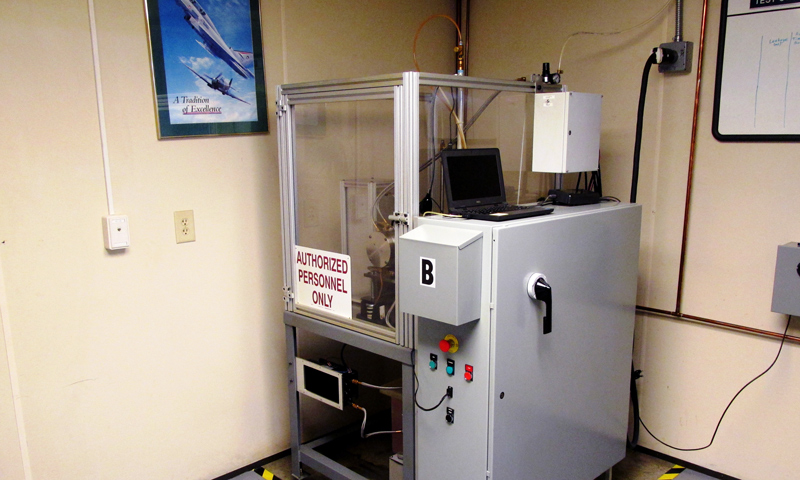

Test Rig B

Test Rigs A, Detailed
Allows for simultaneous comparative testing of two different seals.

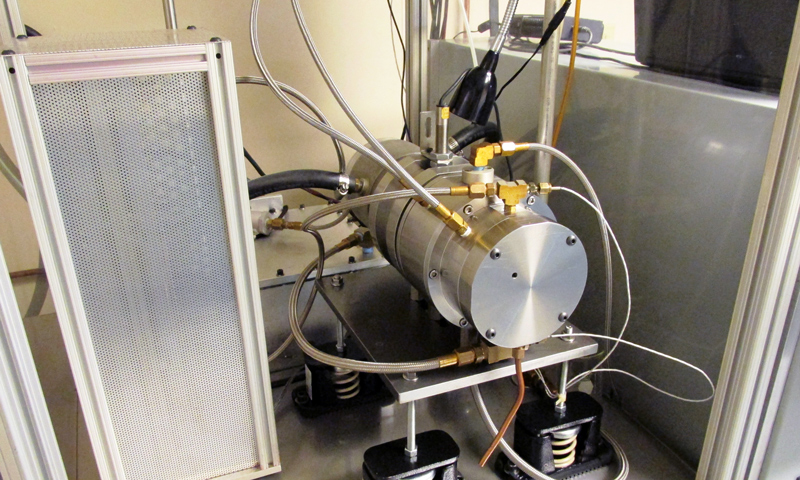

Test Rig B, Detailed
Allows for rapid development of single seal tests for product qualification/verification and testing of low oil/no oil conditions at the seal interface.
